Detail Product

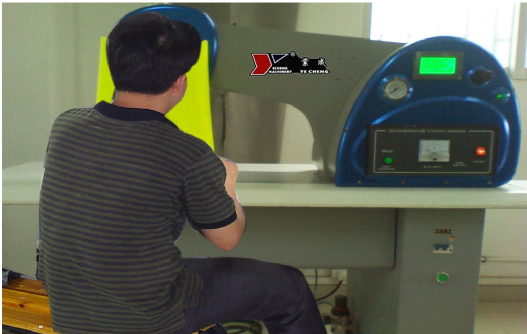

Name : Hot Air Seam Sealing Machine

Cate : DY-2

Group : Hot-Air Machine

Company : TL MACHINERY FACTORY

LCD screen, Japanese Scale IC, steady operation, reliable quality, all the actions parameters are showed in the LCD screen, convenient for operate.
The password of LCD parameters can be modified in order to prevent staff modify the parameters, so that to make quality more reliable.
Automatic temperature control，simpler operation.
The cylinder of upper roller is the ultrathin adjustable cylinder, can be used for adjusting the pressure for processing thin and thick fabric. Prevent the fabric and the edges damaged and have traces, solve the similar problems press straight to the end as the same machines.
The wind of heat gun is depending on the natural high-pressure air blower; avoid the impact of inside heat tube of the conventional high-pressure pump of the gas source with moisture, so that more durable.

Technical Parameters

Power Consumption	220 VAC 50 Hz – 60 Hz
Rated Power	1800W
Temperature	up to 700℃
Woking Speed	2.5m-22m/min
Woking pressure	3.5 - 4 kg/cm²
Rated Current	15A
Upper Roller Pressure	0.5 kg/cm² – 3.5 kg/cm²
Upper Roller Lift	20 – 30 mm
Tuyere Width	24mm and the special size can be ordered
Adhesive Tape Width	Standard 10mm-24mm the special width can be ordered
Upper Roller Diameter	65 mm
Pressure roller width	26mm the special width of the wheel can order
Net weight	160 kg
Exterior dimensions(L×W×H)	1 300 x 550 x 1 700 mm
Sealing skip prevention	Adjustable hot air tube,roller stop,hot sir tube swing stop prevent sealing skip
